| 브랜드 이름: | Sihovision |
| 모델 번호: | SC900M-SC15 |
| 모크: | 1개 조각 |
| 가격: | 협상 가능 |
| 포장에 대한 세부 사항: | 1pcs/ctn 45×13×40cm 4kg |
| 지불 조건: | T/T, PayPal, L/C, D/A, D/P, Western Union, MoneyGram |

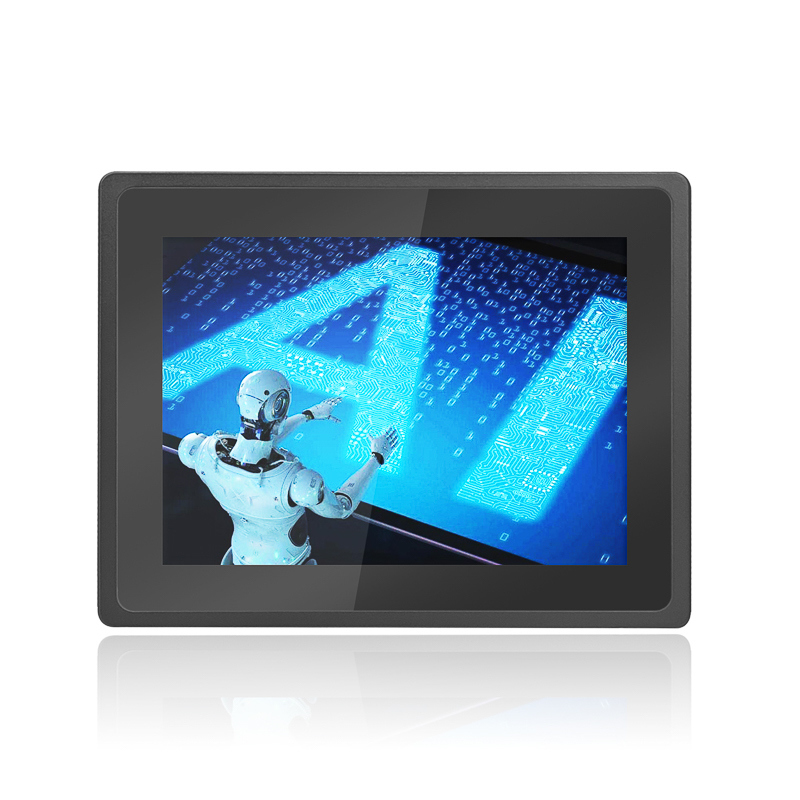

Industrial 10-Point Capacitive Touchscreen Display | IP65 Waterproof | 24/7 Operation
Specification
| Model:SC900M-SC121 | |
| PC | |
| CPU | Intel® Celeron J4125, Quad cores, Quad threads, Base 2.4 Ghz, Turbo 2.7 Ghz, Fanless |
| Chipset | Intel® Gemini Lake |
| Memory | 4G DDR4-2400/2133, max 16G |
| Storage Capacity | 128G SSD |
| Graphics | Intel® UHD Graphics 600 |
| Audio | Onboard ALC269 audio decoding controller |
| Network | 1*Realtek RTL8111E Gigabit network card |
| Wireless Network | WIFI + Bluetooth 4.0, 4G Optional |
| Preinstalled OS | Window 10 |
| Operation System | Support Windows 10/11, Linux, Ubuntu, Debian, etc. |
| I/O | |
| USB | 4* USB2.0, 2* USB3.0 |
| COM | 1* COM RS232, 1*COM RS485 |
| LAN | 1* RJ45 |
| Video Outputs | 1*VGA, 1*HDMI |
| Audio | 1* 3.5mm Line-out, 1* 3.5mm Line-in (2 x 2W Speakers) |
| Power input | 1* 12V DC jack |
| Other | 1* Power on/off button, 1* WIFI antenna jack male |
| LCD panel | |
| Screen diagonal | 12.1" |
| Display active area | 245.76(W)x184.32(H) mm / 9.676x7.257 in |
| Resolution | 1024*768 |
| Aspect ratio | 4:3 |
| Brightness (cd/m²) | 300 nits (1000 nits sunlight readable) |
| Brightness control | PWM adjustment |
| Contrast ratio | 1000:1 |
| View angle | 85°/85°/85°/85° (R/L/U/D) |
| Support Color | 16.7M colors |
| Backlight | WLED, 50K hours |
| Touch panel | |
| Touchscreen Type | Projected Capacitive Touch (up to 10 points ) |
| Surface Hardness | 7H |
| Surface treatment | N/A |
| Luminousness | ≥90% |
| Touch controller IC | ILITEK2510 |
| Available touch drivers | Windows, Linux, Android, Mac, etc |
| Touch bonding | Air bonding |
| Touch optional | Resisive touch, non touch, IR touch optional |
| Power Supply | |
| Working voltage | DC 12V(9-36V DC Optional) |
| Power consumption | 25W |
| Power adapter | AC 100 ~ 240V input and DC +12V@5A MAX output, 60W |
| Enclosure | |
| Material | Aluminium alloy bezel+ Zinc Plating cold rolled steel rear housing |
| Finish | Front bezel: Sandblasting+Hard Anodizing, UV-protection and Anti-discoloration treatment Rear housing: powder coated |
| Color | Black |
| VESA mounting | VESA mount 75*75/100*100mm, Panel mount |
| IP grade | Front IP65 waterproof |
| Cooling system | Passive - Fanless |
| Operating Environment | |
| Temperature Range | Operating: -20 °C(-4℉) to 70°C(158℉), Storage: -30 °C(-22℉) to 80°C(176℉) |
| Relative humidity | Up to 100% at all relevant temperatures, non-condensing |
| Vibration | GB/T 2423.10-2019 |
| Shock | GB2423.5 |
| EMC | Class B |
| Packing Details | |
| Product weight | Net weight 2.8kg Gross weight 3.5kg |
| Product Dimension | 315×258×59mm |
| Packing info | 1pcs/ctn 45×13×40cm 4kg 2pcs/ctn 45×24×40cm 9kg |
| Accessories | Power cable, Power supply, Embedded mount screws |
| Other | |
| Warranty | 1 year warranty |
| Certificate | CE, FCC, RoHS |
Typical Applications:
Advantages
1. Working temperature range is -10°C to 60°C.
2. Industrial LCD panel is wide viewing angle, high nits and true color.
3. Brightness is 1000 nits, sunlight readable suitable for more outdoor applications.
4. High performance motherboard, 7x24 continuous operation.
5. Symmetric design can be utillized in portrait mode with style.
6. Heat sink in back case great for heat dissipation and beatiful appearance.
7. Working voltage is wide range 9-36V, suitable for various applications.
Attention of warranty
1. First year warranty: by free
2. 2nd to 3rd year warranty: maintaining by some charges.
